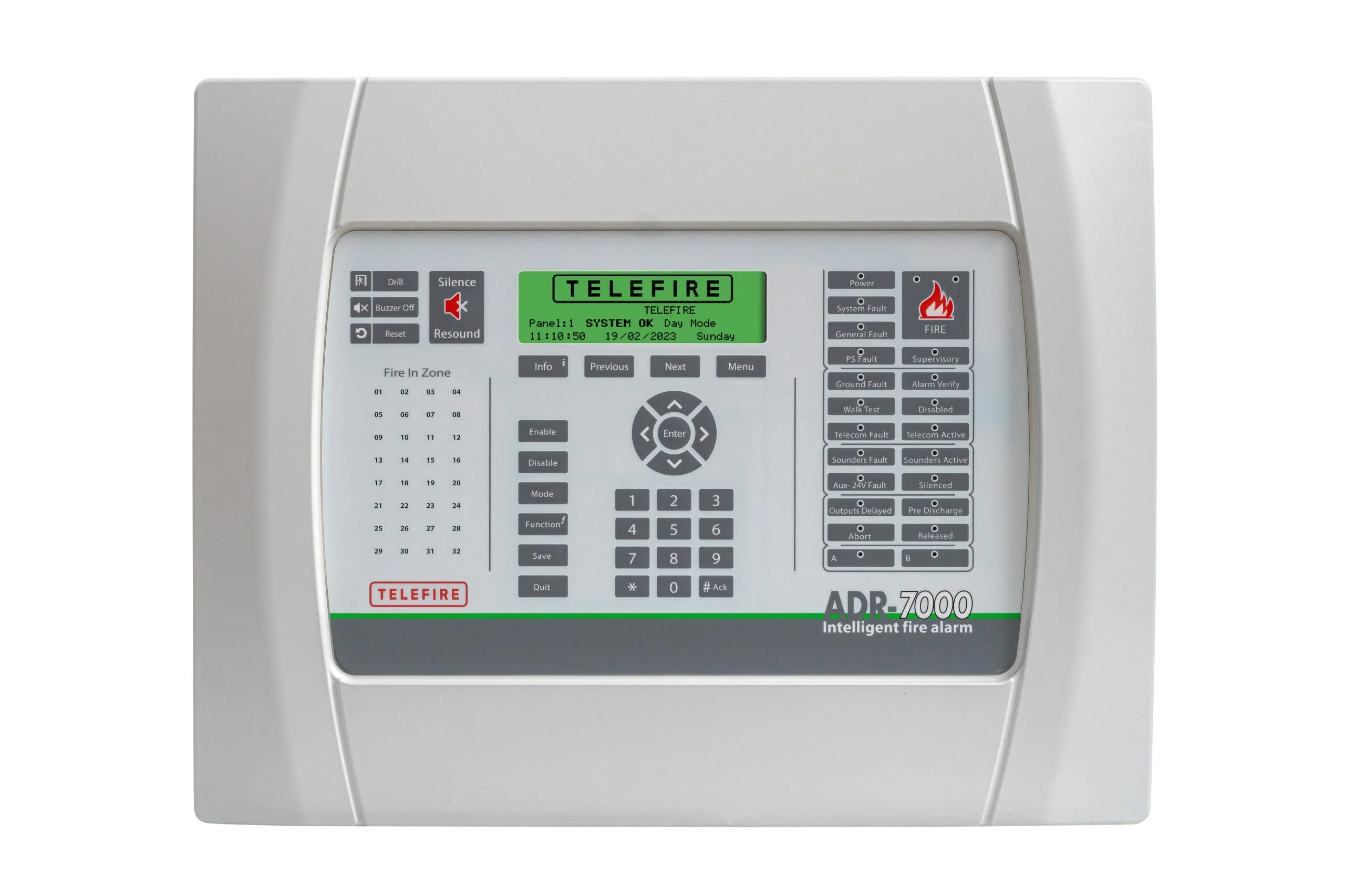

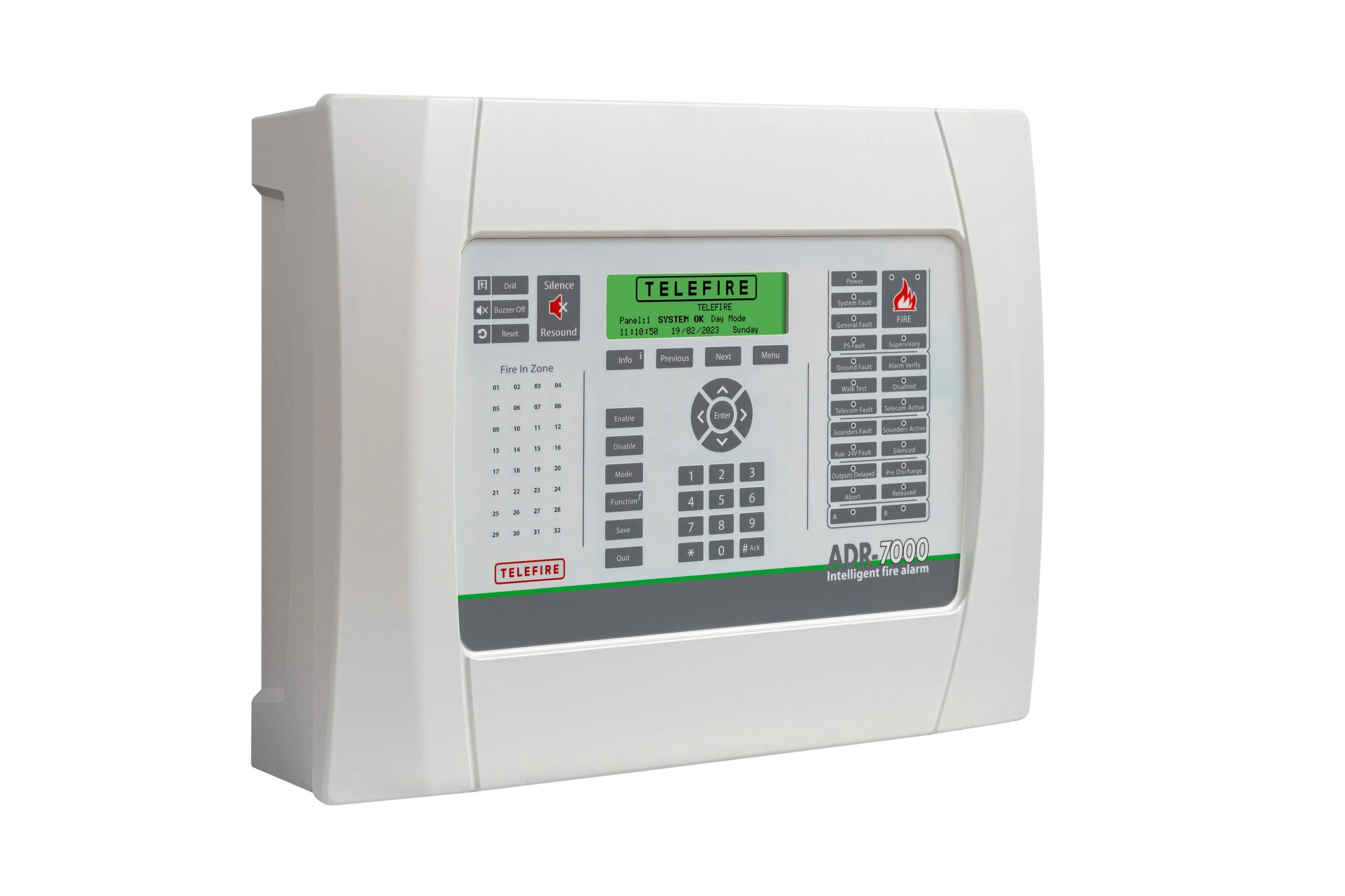

ADR-7000

Analog Addressable Smart Control Panel for Large and Complex Sites

The ADR-7000 is an advanced analog smart control panel boasting cutting-edge technology and seamless integration for large and intricate endeavors. The ADR-7000 is an analog smart control unit developed using new and advanced technology. This cyber-secured system is designed for large and complex projects that demand advanced control, management, and programming capabilities. It can expand to accommodate up to 8 loops and control up to 1016 smart devices within a single unit. Proudly bearing the American UL standard mark, the European EN-54 standard mark, and compliant with UL-2900. it excels in fire detection, automatic extinguishing, smoke management, addressable PA systems, and seamless integration with various building systems.

Product Description

Technical Features

Product Documentation

Certifications

Product Description

Modular analog smart control unit
Ideal for large and complex projects
Supports up to 8 loops and 1016 smart devices per control panel
Networked up to 64 control panels
Master-Slave configuration in control unit network
Comprehensive fire detection capabilities
Automatic extinguishing system integration
Seamless integration with addressable PA systems
Built-in smoke management for enhanced safety
Cyber-secured for robust protection and compliance with UL-2900 for cybersecurity standards
Modern and innovative design
Versatile installation options, including flush or wall installation
User-friendly graphic LCD display for easy operation
LED event indicators for quick status assessment
Intuitive symbolic and detailed interface
Compliant with American standard UL & European standard EN-54

Technical Features

Modular design with support for up to 8 loops
Scalable to handle up to 1016 addresses per control panel
Extensive network capacity supporting up to 65,024 addresses on networked control panels
Integration of up to 16 remote annunciator panels
Versatile zoning capabilities with support for 511 logical zones
Advance activation matrix (AAM)®
Advance current management (ACM)®
Robust integrated power supply delivering 150 W
Substantial battery capacity, with each unit capable of handling up to 18 AH
Multiple device communication options, including Class B and Class A SLC
RS-485 communication with remote annunciators, both Class B and Class A
Three programmable relays on the main board for flexible control options
Enhanced visibility during alarms with LED zone display
Two Notification Appliance Circuit (NAC) outputs for sounders and strobes
Diverse computer communication connections, including RS-232, USB, and optional TCP/IP
Integral address programmer for simplified configuration
Integral diagnostic tools for addressable devices, networked panels and remote annunciators
Feature-rich LCD screen with a resolution of 64*240 pixels for effective monitoring and control

Product Documentation

ADR-7000 Brochure

Download

ADR-7000 Technical Manual

Download

Certifications
