Detectors

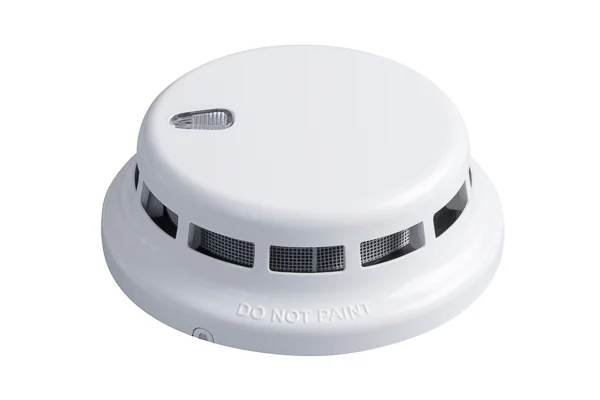

TFO-480A

Analog Addressable Photoelectric Smoke Detector

TFO-480A Analog Addressable Photoelectric Smoke Detector has exceptional capabilities. Equipped with a robust microprocessor, it excels in detecting smoldering smoke and effortlessly adapts to changing environmental conditions. Its user-friendly features, including soft-set address programming and remote testing, enhance convenience. Compliant with European and American standards, and holding UL approval, it guarantees reliability. This detector seamlessly integrates with TELEFIRE’s addressable fire alarm panels, including ADR-7000, SAVER 7000, and GUARD-7, offering precise sensor control and drift compensation to combat dust accumulation and environmental shifts. Highlighted by a modern, sleek design and analog communication, the TFO-480A stands out as a low-maintenance solution. And, to top it off, its eco-conscious design is completely free of radioactive materials, making it the intelligent choice for green-minded fire safety. Elevate your fire safety with this innovative and environmentally friendly solution.

Product Description

plus

Technical Features

plus

Product Documentation

plus

Certifications

plus

Product Description

plus
  • Advanced microprocessor for local signal processing and noise immunity
  • Interactive drift compensation for reliable performance in changing environments
  • Smoldering smoke and various material combustion detection
  • Soft-set address programming for easy configuration
  • Direct and remote testing options for convenience
  • Field-cleanable chamber and labyrinth
  • Ventilated chamber with infrared transmitter and receiver.
  • “Green” and eco-friendly design without radioactive materials
  • Complies with European Standard EN-54 and American UL Standard.

Technical Features

plus
  • Adjustable sensitivity range from 0.8% to 2.0% obscuration
  • 360° visibility alarm LED indication
  • Compact dimensions: 101 mm (diameter), 52 mm (height), and 106 g (weight)
  • Operating temperature range from -10°C to +60°C
  • Relative humidity range from 10% to 93%
  • Various current consumption modes for energy efficiency
  • Powerful microprocessor supervises detector assemblies
  • Integral test and diagnostic circuit for cost-effective maintenance
  • Electronic address programming without moving parts
  • Protection against rapid dismantling (anti-vandal)
  • Hidden Allen screw for secure body and base connection
  • Modulated operating voltage supplied by the control panel via SLC

Product Documentation

plus

Certifications

plus
